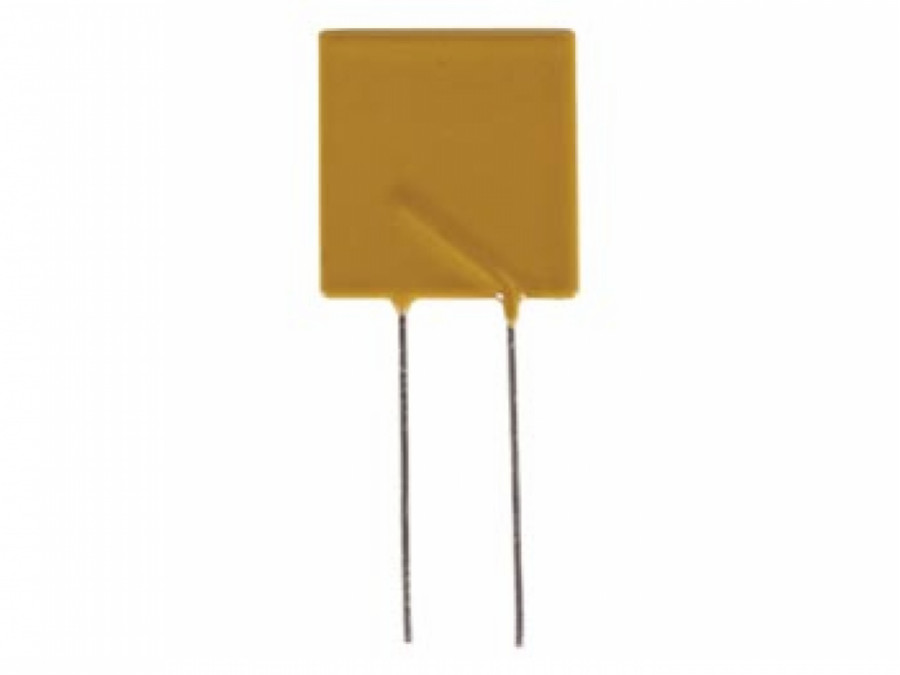

RESETTABLE FUSE 0.9-1.8A / 30Vdc
Napisz opinię
1,66 zł
Czas dostawy : 7-10 dni
Producent:
Kod EAN: 5410329214692
Kod produktu: I-CFJEH090
Opakowanie zbiorcze: 0
The PTC resistor resets automatically and protects your circuit permanently.
Specyfikacje:
Specyfikacje:
- low resistance
- high hold current
- solid state
- radial leads
- hold current Ih (A): 0.90
- trip current It (A): 1.80
- max. time to trip (at 5 x Ih): 5.9
- max. current Imax (A): 40
- rated voltage Vmax (Vdc): 30
- typ. power Pd (W): 0.6
- resistance tolerance:
- Rmin (ohm): 0.070
- Rmax. (1 hour after tripping) (ohm): 0.22
- dimensions:
- A (max): 7.4
- B (max): 12.2
- C (typ): 5.1
- D (min): 7.6
- E (max): 3.0
- F (typ): 0.9
- operating current: 900mA ~ 9.0A
- maximum current: 40A
- maximum voltage: 30V
- temperature range: -40°C to +85°C
- materials:
- leads: tin-plated copper
- insulating: flame-retardant epoxy, meets requirement UL-94V-O
